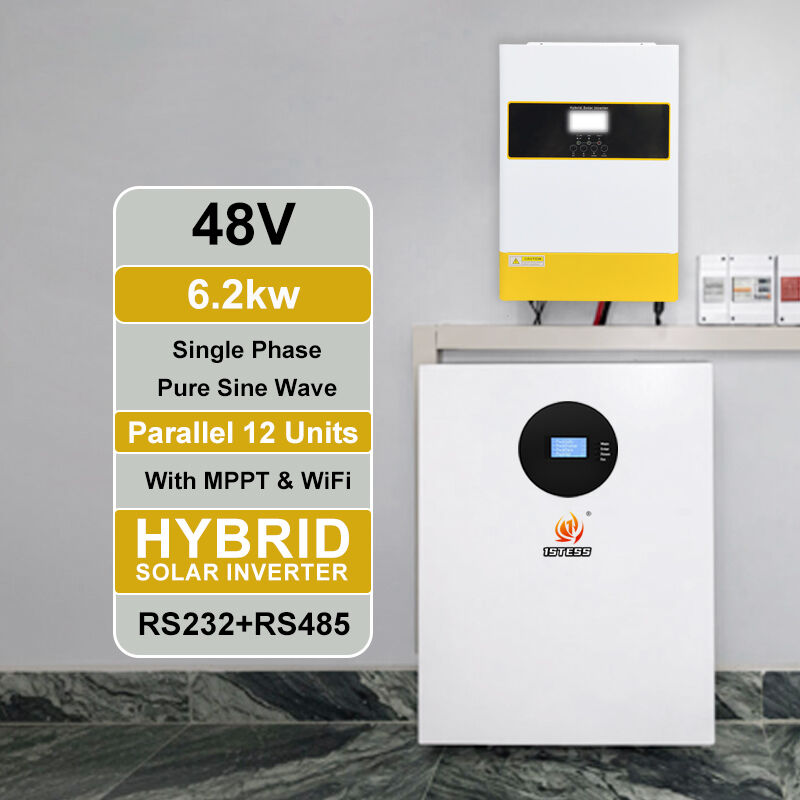

120A MPPT Solar Inverter 6.2KW 12 Units Parallel Capable 10ms Transfer Time

Name: 120A MPPT Solar Inverter 6.2KW 12 Units Parallel Capable 10ms Transfer Time
Brand: Shenzhen First Tech Co., Ltd.
SKU: EM-T (PV60-500VDC) 5500-48PL
Price: 350.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: 1stess

Sertifikasi: CE, IEC

Nomor model: EM-T (PV60-500VDC) 5500-48PL

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Harga: To be negotiated

Kemasan rincian: Kotak Karton

Waktu pengiriman: 30 hari

Syarat-syarat pembayaran: L/C,T/T

Menyediakan kemampuan: 2000 buah per bulan

Dapatkan Harga Terbaik

Hubungi Sekarang

Spesifikasi

Deskripsi

Spesifikasi

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                          120A MPPT solar inverter 6.2KW, off grid hybrid solar inverter parallel capable, solar inverter 10ms transfer time


Mode Pengisian Daya:	MPPT	Suhu Operasional:	-10°C hingga 50°C
Tipe inverter:	Inverter Off Grid	Frekuensi:	50Hz/60Hz
Tegangan output nominal:	220VAC/230/240VAC	Antarmuka Komunikasi:	RS232+ RS485+ Port CT Eksternal
Rentang tegangan input yang dapat diterima:	170-280VAC atau 90-280VAC	Ukuran:	450300130mm
Bentuk gelombang:	Gelombang sinus murni	Arus keluaran:	120A
Berat:	12kg

Mode Pengisian Daya:	MPPT
Suhu Operasional:	-10°C hingga 50°C
Tipe inverter:	Inverter Off Grid
Frekuensi:	50Hz/60Hz
Tegangan output nominal:	220VAC/230/240VAC
Antarmuka Komunikasi:	RS232+ RS485+ Port CT Eksternal
Rentang tegangan input yang dapat diterima:	170-280VAC atau 90-280VAC
Ukuran:	450300130mm
Bentuk gelombang:	Gelombang sinus murni
Arus keluaran:	120A
Berat:	12kg

Deskripsi

120A MPPT Solar Inverter 6.2KW 12 Units Parallel Capable 10ms Transfer Time

120A MPPT Solar Inverter 6.2KW

Advanced hybrid solar inverter with 12-unit parallel capability and 10ms transfer time for reliable power backup and solar energy utilization.

Key Features

6.2KW Pure Sine Wave Output - Rated power 6.2KVA/6.2KW, surge up to 12400VA, power factor 1.0, suitable for all kinds of household and office appliances.
Flexible Parallel Expansion - Supports up to 12 units in parallel for single-phase or three-phase configurations, easily scaling from small homes to commercial sites.
High PV Input Voltage (500Vdc Max) - MPPT voltage range 60~450Vdc, compatible with high-voltage solar panels for improved system efficiency.
Built-in 120A High-Current MPPT Controller - Max solar input current 27A, max solar charge current 120A, enabling fast and efficient PV harvesting.
Perfect Li-ion/LiFePO4 Compatibility - Supports lithium battery activation (via PV or utility) and features RS485 communication for BMS integration.
Multiple Output Priority Modes - Selectable UTL, SOL, SBU, and SUB modes to adapt to different usage scenarios.
Battery-less Operation - Can run without a battery, reducing initial investment and increasing flexibility.

Technical Specifications

Feature	GM5500-48PL	GM6200-48PL
Phase Configuration	1-Phase In / 1-Phase Out	1-Phase In / 1-Phase Out
Maximum PV Input Power	5500W	6500W
Nominal Output Voltage	220/230/240V AC	220/230/240V AC
Output Waveform	Pure Sine Wave	Pure Sine Wave
Battery Voltage	48V DC	48V DC
Communication Ports	RS232 + RS485 + External CT Port	RS232 + RS485 + External CT Port
Maximum Solar Charge Current	100A	120A
Dimensions (D x W x H)	448 × 315 × 122 mm	450 × 300 × 130 mm

Performance Features

Wide AC Input Range - 170-280VAC (PC mode) / 90-280VAC (home appliance mode), adapts to unstable grids
Auto Frequency Sensing - Automatically detects 50/60Hz
High Efficiency - Peak efficiency up to 94%
Fast Transfer Time - 10ms (PC mode) / 20ms (home appliance mode) for uninterrupted power to critical loads
Comprehensive Protection - Overload protection (5s @ ≥140% load; 10s @ 110%~140% load), overcharge protection (63VDC)
Multiple Communication Ports - RS232 & RS485, plus plug-and-play WiFi Dongle support for remote monitoring
Detachable Dust Cover - Protects against harsh environments, extending product lifespan
Equalization (EQ) Function - Optimizes battery performance and prolongs battery life

Product Images

Front View

Side View

Display Panel

Connection Terminals

Installation Diagram
